DC Motor Simulator Hack 2.2.1

Screenshots

Description

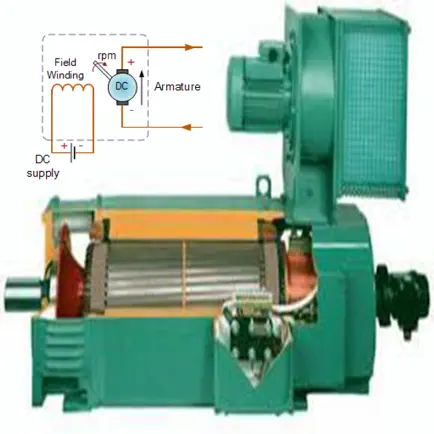

This tool allows examining fundamental characteristics, performing analysis both in steady-state and in transient-state conditions, of a DC separately excited motor. In particular to perform the transient analysis, a complex Runge Kutta solver has been implemented. The numerical solver is based on ad hoc implemented Runge Kutta method, that in this case it solves a 2nd order differential equation system: the first equation is related to the armature winding, and the second one represents the mechanical equilibrium: “d’Alembert” equation.
The application consists in three tabs: “Data management”, “Steady state” and “Transient analysis” respectively.

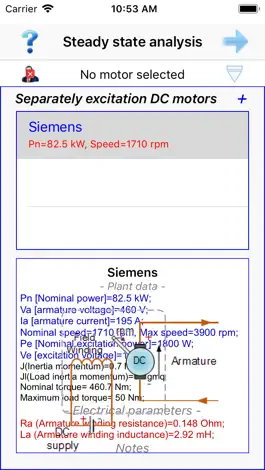

In the first tab is possible to store all the requested data of several DC motors, by selecting one of several stored motors is possible to examine the behavior either in steady state and transient conditions. In the case that a DC motor data set is unavailable is possible only to press the “Demo” button and a default stored DC motor data set appears.

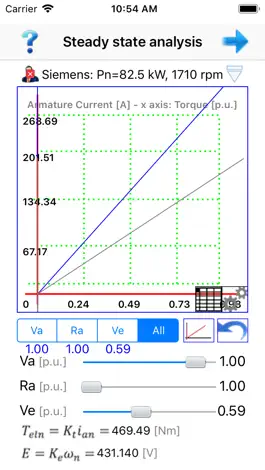

The second tab is useful to perform a steady state analysis of the selected DC motor. In particular are shown the Motor Shaft speed [rad/s] and the Armature current [A] in function of the Electromagnetic torque. The electrical and/or mechanical quantities are plotted, by touching the screen it is possible to see the values of the graphed quantities. In this version of the app is possible to see also numerical values of the graphed quantities, by touching the bottom left area of the graph window.

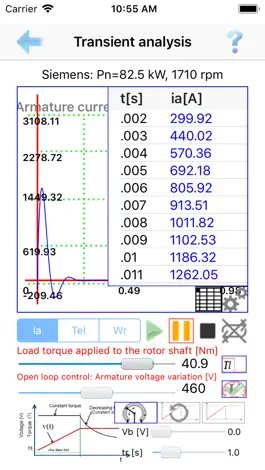

At least the third tab is useful to perform the transient analysis. In particular are analyzed the transient of the Armature current and the Electromagnetic torque and Motor Shaft speed in function of the time. Also in this case the electrical and/or mechanical quantities are plotted, in particular during the transient analysis it is possible to change the Load torque applied to the motor shaft. In the Pro version of the app it is possible to see also numerical values of the graphed quantities, by touching the bottom left area of the graph window, when the simulation is in pause state. In order to perform a more accurate transient analysis it is possible to vary, during the simulation, the following electrical quantities: armature voltage, and excitation winding voltage respectively. Furthermore it is possible to study transient phenomena also varying the armature resistance, by adding an external power resistor in series with the armature circuit.

Version history

2.2.1

2021-10-05

In this version have been removed some bugs present on user interface, when the app runs under iPadOs.

2.2

2021-10-01

In this version has been added support for:
- Support for iPadOs.
- Multi window (multitasking activities) and more instances can be executed under iPadOs;
- Unified interface for iOS and iPadOs.

2.1

2019-02-13

In this version have been removed several bugs and new devices support has been added, performances improvements have been made.
In the transient analysis panel has been added the swipe in the left and right direction on X axis when the X/Y axes settings is performed. This feature is very useful when detailed transient simulation analysis is performed on entire simulation duration.

2.0

2018-01-22

In this version, several new features have been added:
"When the app runs for the first time, a synthesized voice explains the main features and how familiarize with this DC motors simulation tool. During the audio listening, it is possible to set directly the listening position of the welcome synthesized voice by acting on the appropriate slider;
"An integrated editor has been added, it manages the stored DC motors data sets, allowing data insertion, modification and cancellation. The number of saved DC motors data sets depends only by the used iOS device memory, all data are stored and managed by a database engine;
"In transient analysis has been added the possibility to run a simulation in continuous mode, the simulator behaves like a laboratory oscilloscope, and it is possible to compare actual numerical values with the ones to rated motor operating conditions;
"Full iPad support has been added, in particular in this version the PIP (Picture In Picture) function is present, allowing to show two than graph simultaneously in the same graph window;
"DC separately excited motor open loop control simulation has been added;

The simulator user interface has been improved, now is more intuitive and easier to use.

1.1

2014-10-30

In this release have been removed some bugs in the Transient Analysis section. In particular has been improved the Graphical User Interface, in order to make more easy to use the app. Supported retina devices: 4th 5th and 6th generation. The app is optimized for 5th generation devices and requires IOS 7.1 or higher.

1.0

2014-01-10
