Goodman FAD Hack 1.76

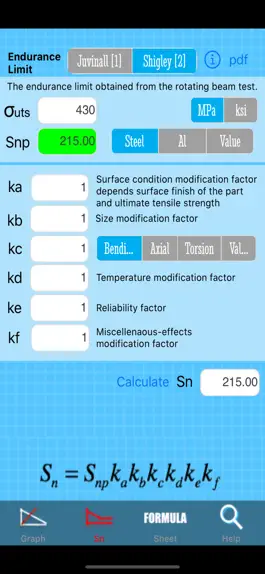

Screenshots

Description

Goodman FAD, Goodman Fatigue Analysis Diagram, is prepared for fatigue strength analysis.

Goodman FAD calculations can be carried with either “residual stress method” or “nominal mean stress method”.

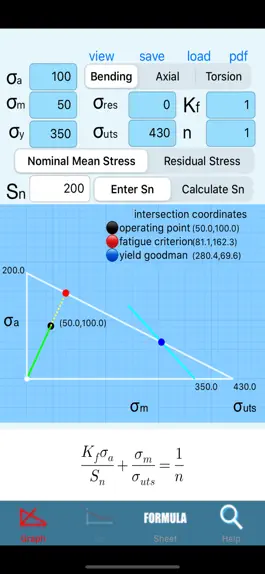

Goodman Diagram constructed automatically once all parameter are entered. Intersection points are calculated and given on Goodman Diagram.

Formulas are given to clarify calculations that are carried out.

Users can save and restore basic analysis parameters.

Version history

1.76

2022-12-08

Bug fixes and compatibility update :)

1.75

2021-10-01

Compatibility update for future iOS versions and devices.
Bug fixes.

1.72

2020-06-07

Compatibility Update for Future iOS Versions.

1.71

2017-11-30

Bug fixes and improvements for iPhoneX.

1.70

2017-10-15

New features, a new approach to residual stress and a compatibility update.
- A new tab is added for showing calculations on a formula sheet (iPhone).
- iPad interface is enriched with formula views of calculations.
- In residual stress method, user to judge whether residual stress is a part of proportional loading i.e. residual stress contribution to mean stress is not multiplied with Kf anymore. Given formula views clarify how calculations are carried out.

1.65

2015-09-22

iOS 9.0 compatibility update and bug fixes

1.60

2015-07-18

This update includes performance and style improvements:
- App is optimised in terms of storage size on devices.
- Colour dots are used at critical points for better problem visualisation.
- Style improvements on several user interface features.

1.50

2015-03-10

- Performance improvements and bug fixes.

- Save and restore basic Goodman line data.

1.30

2014-10-29

New visual style and some cool new features.

-Improvements in iPad interface.

-Users will be able to export captured screens in pdf format via email.

-Users will be able to zoom in and out of help figures (iPhone only).

-Additional figures showing methods and formulas.

1.00

2014-10-19
