Engine Layout Definitions is an educational tool that shows how layout changes in an internal combustion engine piston-crank system will affect engine's displacement, its rated power and dynamic forces.

Engine LD gives graphical plots and lists for displacement volume vs crank angle data and dynamic forces vs crank angle data to support further spreadsheet calculations and basic finite element calculations.

Users can simulate crank rotation with a slider to see effect of selected dimensions on engine packaging.

Version history

1.600

2022-12-05

Compatibility update :)

1.590

2021-10-02

Compatibility update for future iOS versions and devices.

1.580

2020-06-04

Compatibility update for future iOS versions.

1.570

2019-04-29

Performance and compatibility improvements.

1.56

2017-11-30

Minor improvements for iPhoneX.

1.521

2016-12-19

New features and performance improvements (v1.521):

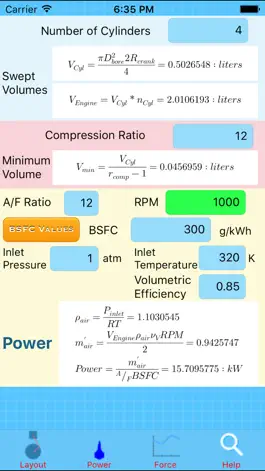

- Power calculation is enriched with formula views including calculation results.
