COMPLETE CONTROL FROM THE PALM OF YOUR HAND
Seamlessly pair your Westcott L60-B COBs and FJ-X Wireless Triggers via Bluetooth®.

EXPAND YOUR POSSIBILITIES
The StudioLink app allows you to create up to 10 groups when connected to multiple L60-B COBs—allowing users the ability to create several groups with individualized control. The app also expands the FJ Wireless color-coded grouping functionality by increasing the number of groups available from 6 to 16. Connect up to 99 FJ Wireless lights.

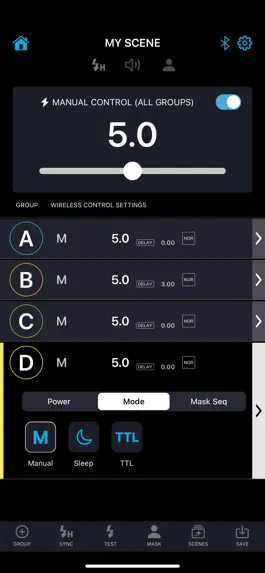

SAVE YOUR LIGHTING SETUPS
The Westcott StudioLink App allows you to create and save up to 99 of your favorite reoccurring lighting scenario settings by saving them as Scenes. This is available in both the FJ and LED sections of the app.

-L60-B COB CONTROLS-
CCT
Intensity
FX
FX Frequency
Blackout Mode
Standby Mode
Blackout Mode (All Lights)
Standby Mode (All Lights)

-FJ-X TRIGGERS CONTROLS-
-Modes-
TTL
Manual
Mask
Delay

-Sync-
High-Speed Sync (HSS)
Front Curtain Sync
Rear Curtain Sync
Freeze

-Functionality-
Test Fire
Modeling Light (ON/OFF)
Audible Beep (ON/OFF)
Sleep
_
CONNECTING AN L60-B COB
1. Ensure that the L60-B is ON.
2. Open the StudioLink app.
3. Select the LED Controls icon.
4. On the L60-B, quick-press the Dim•Bluetooth control knob to turn Bluetooth® on (symbol will appear).
5. Long-press the DIM•Bluetooth control knob until the Bluetooth® logo appears to blink on the L60-B [now discoverable to the StudioLink app].
6. Select Add a Light or Group.
7. Tap the Add a Light option.
8. Locate your device in the Unpaired Devices section.
9. Tap on the L60-B device you want to connect.
10. The app will redirect you to the My Scene menu once connected.
_
CONNECTING AN FJ-X TRIGGER

ENABLING BLUETOOTH®
FJ-X2m
* Turn on the FJ-X2m by long-pressing the Power|Menu button.
* Press the second and third Menu Selection buttons simultaneously to enter the Settings menu.
* Scroll down on the Selection wheel until the Bluetooth® icon is highlighted green.
* Press down on the wheel to highlight [OFF], then press down on the wheel once to change the status to [ON].
* Press OK to return to the main screen. [Note: The Bluetooth® icon is in the bottom right-hand corner.

FJ-X3
* Turn on the FJ-X3 by long pressing the Power button.
* Press and hold down the SYNC ∙ MENU button to enter the Settings menu.
* Using the Control Pad click the down button until the Bluetooth® icon is highlighted green.
* Press down on the center button of the Control Pad to highlight [OFF], then press
down on the down button once to change the status to [ON].
* Press and hold down the SYNC∙MENU button to return to the main screen. [Note: The Bluetooth® icon is in the bottom right-hand corner.

NOTE: Powering off FJ-X triggers will turn off Bluetooth® functionality. Repeat the steps above to re-enable.
_
CONNECTING FJ-X TRIGGERS TO THE WESTCOTT STUDIOLINK APP
* Ensure that the FJ-X is on.
* Ensure that the FJ light is on.
* Open the StudioLink app.
* Select the FJ Controls icon.
* When the app displays the Select a Devices screen, select your FJ-X Trigger from the list of available devices.

IMPORTANT: Ensure all versions of software and firmware are up-to-date for all connected devices, including cameras, Westcott FJ devices, L60-Bs, mobile devices, and the Westcott StudioLink app.
